Electricians aur ITI students ke liye Electric motor nameplate समझना सबसे जरूरी basics में से एक है. Motor लगाने से पहले अगर आप Motor Name plate Details पढ़ लेते हैं, तो आप सही wire size, MCB rating, starter type (DOL / Star-Delta), capacitor requirement, overload protection — सब कुछ confidently decide कर सकते हैं.
Motor nameplate पर लिखे values जैसे watts and amps, amp in watt, amps to wattage, motor name plate details, rating of motors सिर्फ numbers नहीं होते — ये पूरी machine की identity और safety limits बताते हैं. Bina Motor nameplate समझे motor को connect करना वैसा ही है जैसे बिना license के vehicle चलाना.
Is blog me hum step-by-step nameplate of motor पढ़ना सीखेंगे, हर parameter को आसान Hindi me समझेंगे, साथ ही formulas, examples, diagrams aur safety tips भी cover करेंगे. Goal simple hai — आप real-life wiring में ज्यादा confident हो जाएं और mistake-free installation कर पाएं.
What is an Electric Motor Nameplate?
An electric motor nameplate एक छोटा सा metallic label होता है जो motor की पूरी electrical और mechanical पहचान बताता है। इसे आप motor का “ID Card + Safety Certificate” भी कह सकते हैं, क्योंकि इसी plate पर voltage, current, HP/kW, RPM, frequency, power factor, efficiency, insulation class, IP rating और star–delta connection जैसी सभी essential ratings लिखी होती हैं।
ये सारी information किसी भी electrician के लिए बहुत जरूरी होती है क्योंकि इन्हें देखकर ही सही wire size, MCB rating, starter type, overload relay setting और rating of motors से जुड़ी पूरी calculation की जाती है।
Industrial wiring, pump installation, machine maintenance या troubleshooting—हर जगह motor name plate details को समझना सबसे पहला और सबसे logical step है।
इसलिए beginners से लेकर professionals तक, हर electrical technician को motor name plate details जरूर पढ़ना आना चाहिए, क्योंकि यही पूरी motor की safe, efficient और practical working को define करता है।
Why Study of Motor Nameplate is Important?
Induction motor nameplate को पढ़ना इसलिए जरूरी है क्योंकि इसी पर पूरी motor की electrical limits, safety ratings और performance details लिखी होती हैं, जिनके आधार पर electrician सही wiring, protection और load setup करता है।
Nameplate देखें बिना motor को connect करना risk भरा होता है, क्योंकि voltage mismatch, wrong wire size, गलत MCB selection या स्टार-डेल्टा connection की गलती से motor overheat होकर burn भी हो सकती है। जब आप motor name plate details समझते हैं, तो आपको FLC (full load current), HP/kW, RPM, PF, efficiency जैसी ratings स्पष्ट हो जाती हैं और आप confidently DOL starter, Star–Delta starter, VFD, contactor rating, overload relay setting और cable selection का सही decision ले पाते हैं।
Industrial machines, pumps, compressors और fans जैसे applications में motor nameplate पढ़ना आपकी troubleshooting skills को भी मजबूत बनाता है, क्योंकि इसी से fault की direction मिलती है। इसीलिए हर smart electrician का पहला कदम होता है — पहले nameplate पढ़ो, फिर wiring करो।

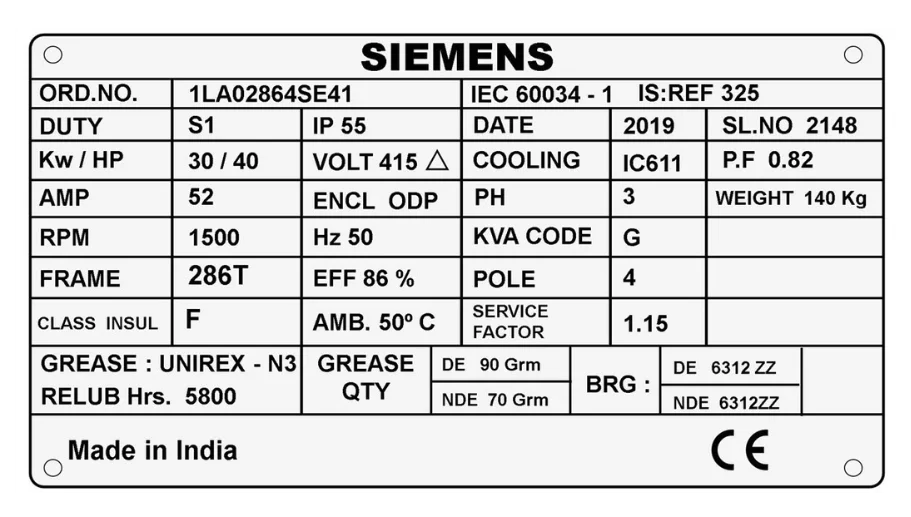

Motor Name Plate Details – Step-by-Step
Motor की nameplate पर दिए गए हर शब्द का मतलब बहुत गहरा होता है। एक smart electrician wiring शुरू करने से पहले हमेशा motor nameplate को ध्यान से पढ़ता है। नीचे हम हर detail को step-by-step समझते हैं:
1) Manufacturer Name (उदाहरण: Siemens)
सबसे ऊपर company का नाम लिखा होता है। इससे पता चलता है कि motor किस brand की है और future में वही मॉडल या parts order करने में आसानी होती है।
2) Order Number / Serial Number
यह motor की unique identity होती है।
इसके आधार पर आप:
- वही motor दुबारा मंगवा सकते हैं
- service center से parts order कर सकते हैं
- warranty या repair status track कर सकते हैं
3) Duty Type (S1, S2, S3… S10)
Duty बताती है कि motor कितनी देर तक safely चल सकती है।
- S1 – Continuous Duty: 24×7 continuously चल सकती है
- S2 / S3 – Short Duty: कुछ समय के लिए चलाने वाली machines
Duty गलत चुनने से motor heat हो सकती है।
4) Power: kW / HP
- kW = बिजली की खपत
- HP = motor की ताकत
Example: 30 kW motor लगभग 40 HP torque दे सकती है।
यह सबसे important rating of motors में से एक है।
5) Current (Ampere – A)
Amp वह unit है जो बताती है कि motor कितनी बिजली खींच रही है।
जैसे पानी को लीटर में मापते हैं, वैसे ही बिजली को Amp में।
Wire size, MCB, contactor rating—सब Amp के आधार पर चुना जाता है।
6) Speed – RPM (Revolutions Per Minute)
यह बताता है कि motor का shaft 1 minute में कितने चक्कर लगाएगा।
- RPM जितना ज्यादा → speed उतनी तेज
- Example: 1440 RPM (4-pole motor)
Lower RPM = high torque applications.
7) Frame Size
Frame motor का body design है।
इसी size के आधार पर हम exact same motor दुबारा मंगवा सकते हैं।
Mounting, shaft height, length—all based on frame.
8) Standards: IEC / NEMA
Motor का design किस international standard के हिसाब से है, यह यहाँ लिखा होता है।
- IEC – International standard
- NEMA – American standard
यह build quality और safety define करता है।
9) Insulation Class (A, B, F, H)
यह बताता है कि winding कितने temperature तक safe है।
- Class F = सबसे common
High insulation = longer motor life.
10) IP Rating (Ingress Protection)
Motor बाहरी environment से कितनी सुरक्षित है:
Two digits होते हैं:
- पहला digit = Dust protection (0–6)
- दूसरा digit = Water protection (0–8)
IP68 = Dustproof + Waterproof (highest protection)
11) Voltage & Connection Type (Star / Delta
Example: 415V Δ
इसका मतलब: motor को 415 Volt Delta connection देना है।
Star & Delta connection motor के starting current और torque पर direct effect डालते हैं।
12) Enclosure Type (IC, ODP, TEFC etc.)
यह बताता है कि motor physically कितनी closed है और airflow कैसे होता है।
- ODP = Open Drip Proof
- IC/TEFC = Totally Enclosed Fan Cooled
Wet/dusty areas में enclosure बहुत important है।
13) Frequency (Hz)
Example: 50 Hz
मतलब current एक सेकंड में 50 बार ऊपर-नीचे (AC waveform) चलता है।
Wrong frequency = wrong speed.
14) Efficiency (%)
Example: 86%
मतलब motor 100% electrical input में से 86% mechanical output देती है।
Higher efficiency = कम बिजली bill।
15) Ambient Temperature (Amb Temp)
Example: 50°C
यह बताता है कि motor किस maximum surrounding temperature में safely काम कर सकती है।
16) Cooling Method (IC Codes जैसे IC 411)
यह बताता है कि motor को ठंडा रखने का तरीका कौन सा है।
Fan cooled, natural cooled आदि।
17) Phase (1-Phase / 3-Phase)
Example: PH – 3
यह बताता है कि motor को 3-phase supply चाहिए।
18) KVA Code
Starting के समय motor कितनी power खींचेगी, यह बताता है।
Chart से alphabet मिलाकर multiply करने पर starting KVA पता चलता है।
19) Number of Poles (2, 4, 6, 8 Poles)
Poles जितने ज्यादा, RPM उतना कम।
- 2-pole → 3000 rpm
- 4-pole → 1500 rpm
- 6-pole → 1000 rpm
Example: 1.15
इसका मतलब
20) Service Factor (SF)
- 30 kW motor short period में 34.5 kW तक load handle कर सकती है।
लेकिन long-term overload → motor burn.
21) Grease Type & Quantit
Nameplate पर लिखा होता है:
- कौन सा grease use करना है
- कितने घंटे बाद re-greasing
- कितना gram grease डालना है
- कौन सा bearing number use होगा
यह motor name plate details maintenance के लिए जरूरी information है।
Important Safety Guidelines
Electric motor install करते समय सबसे जरूरी है कि आप हमेशा motor nameplate पर दिए गए voltage, current, HP, service factor और IP rating को follow करें। गलत voltage देने, गलत wire size या MCB चुनने से motor overheat होकर burn हो सकती है। Starter selection (DOL, Star–Delta, VFD) भी हमेशा nameplate के FLC और rating of motors के हिसाब से ही करें।
Proper pipe earthing, सही insulation class, strong mounting, regular greasing और phase balance check करना motor की life बढ़ाने के लिए बहुत जरूरी होता है। याद रखें—नाम प्लेट सही तरह से पढ़कर wiring करना ही एक smart electrician की पहचान है।
Conclusion
अब आप clearly समझ चुके हैं कि किसी भी electrician के लिए motor name plate details पढ़ना क्यों जरूरी है। एक छोटी-सी motor nameplate में पूरी motor की पहचान, उसकी limits, उसकी power rating और उसकी safety का पूरा roadmap छिपा होता है।
चाहे आप industrial panel लगा रहे हों, कोई pump connect कर रहे हों, या किसी factory में maintenance कर रहे हों—हर जगह nameplate of motor ही starting point होता है। इससे आपको voltage, current, HP/kW, RPM, PF, efficiency, insulation class, IP rating और rating of motors जैसी सारी critical information मिल जाती है, जिसकी मदद से correct MCB, wire size, contactor, starter और overload settings decide की जाती हैं।
Smart electricians वही होते हैं जो wiring शुरू करने से पहले ध्यान से motor nameplate check करते हैं और हर number का मतलब जानते हैं। इससे न सिर्फ motor safe चलती है, बल्कि उसकी life भी बढ़ती है और fault-finding भी आसान हो जाती है। उम्मीद है कि अब आप किसी भी electric motor nameplate को confidently पढ़ पाएंगे और उसे real-life installation में लागू कर पाएंगे।
अगर आप ऐसे और practical electrical guides सीखना चाहते हैं, “MB Electrical Channel चेक करें” — आपकी free learning series तैयार है!
