घर-घर में इस्तेमाल होने वाला सबसे common electrical appliance है ceiling fan। लेकिन जब repairing या wiring की बात आती है, तो electrician और students के लिए इसका हर part जानना ज़रूरी होता है।
इस blog में हम ceiling fan parts name की complete list, उनके functions और spare parts के बारे में step-by-step सीखेंगे। साथ ही, आप यह भी देख सकते हैं कि fan का wiring कैसे होता है Fan Connection with Capacitor इससे आपकी practical knowledge strong होगी और troubleshooting आसान लगेगी।
याद रखिए – एक अच्छे electrician की पहचान है कि वह basic appliances को अंदर तक समझता हो।

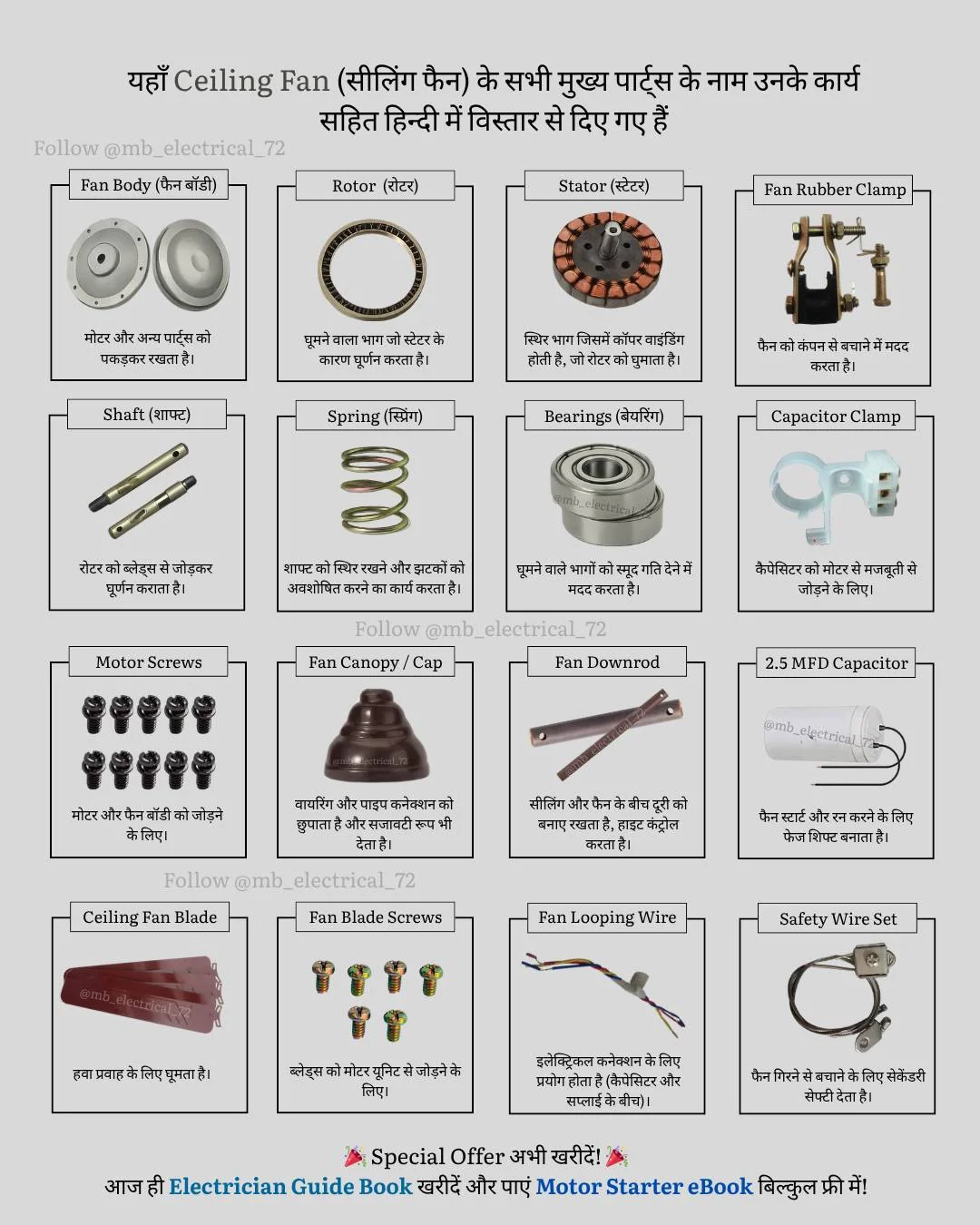

Ceiling Fan Parts Name (Complete List)
Stator (Main Body):
Stator ceiling fan का fixed part होता है। इसके अंदर copper winding लगी होती है। जब AC current इस winding से गुजरता है तो यह magnetic field generate करती है। यही field rotor को घूमने के लिए force देती है।
Rotor:
Rotor stator के अंदर लगा होता है और freely घूम सकता है। Magnetic field की वजह से rotor घुमता है और rotor से जुड़े blades भी घूमने लगते हैं। यही rotation हवा circulate करता है।
Winding (Copper Coil):
Fan के stator में लगी copper coil को winding कहते हैं। जब इसमें current flow होता है तो electromagnetic field produce होता है। यह field fan के motion की शुरुआत करता है।
Shaft:
Rotor और blades shaft पर fix रहते हैं। Shaft एक central rod होती है जो rotor की rotation को blades तक पहुंचाती है और पूरे fan को balance रखती है।
Bearing:
Bearing shaft को smoothly घूमने में मदद करता है। यह friction और noise कम करता है ताकि fan बिना रुकावट लंबे समय तक smoothly चले।
Blades (पंखा की पत्तियाँ):
Blades ceiling fan का visible part हैं जो हवा फैलाते हैं। जब rotor घूमता है तो blades fast rotation से हवा का circulation करते हैं और room को cool रखते हैं।
Capacitor:
Capacitor ceiling fan का सबसे जरूरी part है। यह starting torque देता है और winding में phase difference create करता है जिससे fan आसानी से start और run कर सके। बिना capacitor fan नहीं घूमेगा।
Canopy (Cover):
Canopy decorative cover होता है जो ceiling और fan के joint को hide करता है। यह fan को attractive look देने और support करने का काम करता है।
Down Rod:
Down rod ceiling और motor के बीच सही distance maintain करता है। यह fan की height fix करता है ताकि airflow ठीक तरीके से पूरे room में पहुंचे।
Regulator (Speed Controller):
Regulator fan की speed control करता है। Current flow को adjust करके fan की speed कम या ज्यादा की जाती है। Modern ceiling fans में electronic regulators ज्यादा use होते हैं। देखें: Fan Regulator Connection Diagram
Fan Rubber Clamp:
Fan rubber clamp ceiling fan को ceiling से मज़बूती से पकड़ने और vibration कम करने में मदद करता है। इससे fan smooth और सुरक्षित तरीके से चलता है।
Spring (स्प्रिंग):
Spring ceiling fan में support और alignment बनाए रखने के लिए use होती है। यह हल्की-सी cushioning effect देती है ताकि fan balance ठीक रहे।
Capacitor Clamp:
Capacitor clamp एक छोटा mechanical part है जो capacitor को fan body पर मज़बूती से fix करने का काम करता है। इससे capacitor हिलता-डुलता नहीं और connection सुरक्षित रहते हैं।
Motor Screws:
Motor screws fan body और उसके अलग-अलग parts को आपस में जोड़ने के लिए इस्तेमाल किए जाते हैं। यह fan की assembly और durability के लिए ज़रूरी हैं।
Fan Blade Screws:
Fan blade screws पंखे की पत्तियों (blades) को motor shaft से मजबूती से जोड़ने का काम करते हैं। बिना इन screws के blades सुरक्षित नहीं लग सकते।
Safety Wire Set:
Safety wire set fan के गिरने से बचाने के लिए लगाया जाता है। यह ceiling और fan body के बीच एक अतिरिक्त सुरक्षा कवच की तरह काम करता है।
Ceiling Fan Spare Parts Importance
Ceiling fan घर का सबसे ज़्यादा इस्तेमाल होने वाला electrical appliance है। Regular use और dust की वजह से इसमें कभी-कभी छोटी-मोटी खराबी आ सकती है। ऐसे समय पर ceiling fan spare parts की importance बहुत बढ़ जाती है।
सबसे पहले, spare parts का होना repairing और maintenance को आसान बना देता है। अगर capacitor, bearing या blade खराब हो जाए तो पूरे fan को बदलने की ज़रूरत नहीं पड़ती। आप सिर्फ वही spare part बदलकर fan को फिर से नई तरह चला सकते हैं। इससे न केवल समय बचता है बल्कि cost भी कम होती है।
दूसरी बात, spare parts availability electrician के लिए troubleshooting को आसान बनाती है। जब electrician को ceiling fan all parts name और उनके काम पता होते हैं तो वह तुरंत fault को identify करके सही part replace कर सकता है।
तीसरी बात, branded spare parts का use fan की life और safety दोनों बढ़ा देता है। अगर आप low-quality या duplicate parts use करेंगे तो fan जल्दी खराब हो सकता है या overheating और noise की problem आ सकती है। इसलिए हमेशा अच्छे brands (जैसे Havells, L&T, Schneider Electric) के spare parts use करने चाहिए।
कुल मिलाकर, fan part name और उनके importance को जानना हर electrician और student के लिए ज़रूरी है। इससे न केवल repairing आसान होगी बल्कि आपकी practical knowledge भी strong होगी।
अब आपने detail में Ceiling Fan Parts Name और उनके कार्य सिद्धांत को समझ लिया। यह knowledge हर electrician, ITI student और beginner learner के लिए बहुत जरूरी है क्योंकि practical wiring और repairing की शुरुआत हमेशा basic appliances से होती है। याद रखिए, जितनी ज्यादा आप practice करेंगे और spare parts की पहचान करेंगे, उतने ही confident और expert electrician बनेंगे।
हमेशा branded spare parts का इस्तेमाल करें ताकि fan की life और safety दोनों बनी रहे। इसके लिए आप reputed companies जैसे Havells India से reference ले सकते हैं।
